HYDRAULIC PUMP UP28F ULTRAFLEX

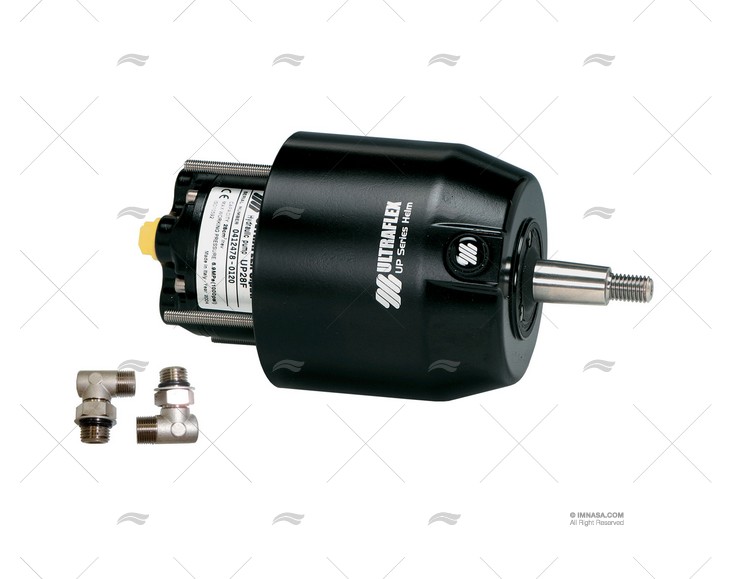

Illustrative photo
Some of the characteristics of the product, such as color or measurements, may vary from the photo. Please select the product finish at the bottom in the references or consult the section 'SEE PRODUCT IN CATALOG' to see more technical information.
Ref. 51250302 OEM (42459R)
HYDRAULIC PUMP UP28F ULTRAFLEX
Not available at the moment
Delivery forecast from 12/28/2024 to 01/04/2025
Product details
-
Name
Steering hydraulic pump
-
Model
UP 28F
-
Volume (cm3)
400
-
Cylinder capacity
28 cm3/rev
-
Minimum Pipeline
10m
-
Ref. 52201107
STEERING PUMP 40HB-CAR LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€620.42 -
Ref. 52201105
STEERING HYDRAULIC PUMP 35HB - CAR LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€572.39 -
Ref. 52201728
HYDRAULIC STEERING PUMP 50HB-CAR LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€640.05 -
Ref. 51250318
HYDRAULIC PUMP UP20F RACORD 1/8 NPT ULTRAFLEX
/ ULTRAFLEX
€585.63 -
Ref. 52202113
STERRING PUMP 29CT HB CAR LP LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€560.29 -
Ref. 52201732
HYDRAULIC STEERING PUMP 50HB-EMB LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€615.78 -
Ref. 52200019
STEERING PUMP 35CT HB CAR LV LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€591.87 -
Ref. 52201762
STEERING PUMP 23 HB CAR LP LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€479.95 -
Ref. 52201106
STEERING PUMP 40HB-EMB LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€594.16 -
Ref. 52200194
STEERING HYDRAULIC PUMP 70CT EMB LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€1,102.87 -
Ref. 52200949
STEERING PUMP 30HB-EMB LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€594.16 -
Ref. 52200106
STEERING PUMP 105CT-EMB LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€3,518.55 -
Ref. 52200130
STEERING PUMP 150CT-EMB LECOMBLE SCHMITT
/ LECOMBLE SCHMITT
€3,672.89 -
Ref. 51250300
HYDRAULIC PUMP UP18 ULTRAFLEX
/ ULTRAFLEX
€494.18 -
Ref. 13250060
PRIMER BULB FOR FUEL LINE 8mm
€9.11 -
Ref. 90890007
AUTOMATIC BILGE PUMP 12V 2850L/H
€40.05 -
Ref. 09120704
PRIMER BULB FOR FUEL LINES UNIV. 3/8'
€9.15 -
Ref. 44250308
BILGE PUMP SUBMERSIBLE 2080 L/H 12V IMNASA
/ IMNASA
€24.60 -
Ref. 90890006
AUTOMATIC BILGE PUMP 12V 2270L/H
€40.05 -
Ref. 90804505
BILGE PUMP SAHARA 500 GPH 12V ATTWOOD
/ ATTWOOD
€78.77 -
Ref. 44250890
GEAR LUBE PUMP YAMAHA
€10.37 -
Ref. 13250061
PRIMER BULB FOR FUEL LINE 9mm RIVIERA
/ RIVIERA
€17.18 -
Ref. 44250212
HAND PUMP FOR OIL EXTRACTION
€26.56 -
Ref. 70250055
BILGE PUMP MEMBRANE 12V
€137.04 -
Ref. 35250533
PRIMER BULB 3/8 SCEPTER
/ SCEPTER
€17.93
Product description
Data of interest
- The maximum pressure exerted on the pump is up to 70 Bars, with a capacity of 28 cm3/revolution and a weight of 5kg.
- It is equipped with a pressure relief valve to protect the circuit against abnormal pressure increases.
- Contains a taper stainless steel shaft of 3/4" and includes 2 adjustable 90° fittings for the 3/8" hose.
- Contains a square flange X64 or a round flange X57 to install the pumps in an intermediate position.
- It has a tilting mechanism: X72 tilt range of 60° and five locking positions.
- The maximum steering wheel diameter is 710mm.
