BEARING PULLER-FITTER CARAVEL

BEARING PULLER-FITTER CARAVEL

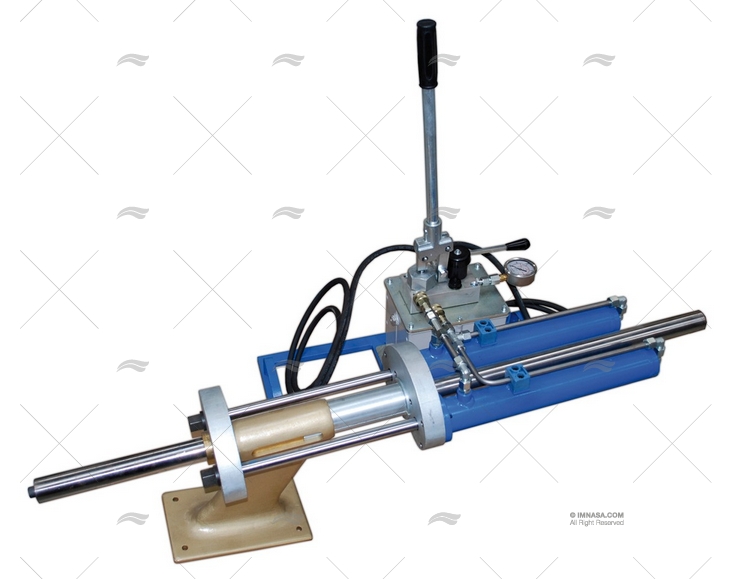

Illustrative photo

Some of the characteristics of the product, such as color or measurements, may vary from the photo. Please select the product finish at the bottom in the references or consult the section 'SEE PRODUCT IN CATALOG' to see more technical information.

Ref. 77250341 OEM (T08)

BEARING PULLER-FITTER CARAVEL

€4,900.71
VAT included

Not available

Choose another model
  • Page in catalogue
  • Description

Product description

Bearing puller-fitter Tool to pull out a bearing from the shaft and fit a new bearing in the same position. It is a manually operated hydraulic machine which does not require any dangerous operation such as the removal of the shaft. It is fast and eficient without damage to housing or shaft. The shaft remains in situ, the bearing can be extracted and a new bearing fitted in minutes. The equipment is designed to accept 2 basic size kits which cover bearing shell diameters up to 100 mm. (outer diameter). The kits are as follows: T8: for bearings with outer diameter not greater than 58 mm. (shaft about 45 mm.) T13: for bearings with outer diameter between 58 mm. and 100 mm. (shaft about 50-80 mm.)

Data of interest

Content coming soon
