ATLANTIC PORTLIGHT SZ 30 OPENING LEWMAR

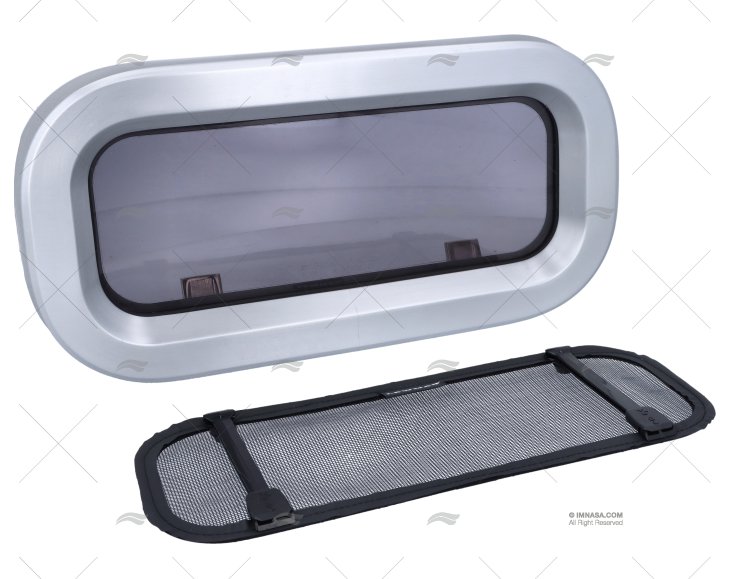

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. L39130070 OEM (39130070)
ATLANTIC PORTLIGHT SZ 30 OPENING LEWMAR
Available
Product details
-
Name
Portlight
-
Model
Atlantic
-
Colour
Silver
-
Acrylic Colour
Smoke Grey
-
Size
30
-
Depth (mm)
200
-
Width (mm)
400
-
Height (mm)
6
-
Cutting Height (mm)
180
-
Cutting Width (mm)
380
-
Cutting Depth (mm)
61
-
Material
Aluminium
-
Ref. L393120200
STAND. PORTLIGHT SZ-1 OPEN. WHITE TRIM LEWMAR
/ LEWMAR
€403.91 -
Ref. L393020200
STAND. PORTLIGHT SZ-0 OPEN. WHITE TRIM LEWMAR
/ LEWMAR
€377.31 -
Ref. 35250077
ALUMINIUM PORTLIGHT 255x190mm FORESTI SUARDI
/ FORESTI SUARDI
€487.19 -
Ref. L393420200
STAND. PORTLIGHT SZ-4 OPEN. WHITE TRIM LEWMAR
/ LEWMAR
€653.30 -
Ref. L393029802
FLUSH MITER PORTLIGHT 0 DARK GREY LEWMAR
/ LEWMAR
€801.29 -
Ref. 35250190
PORTLIGHT RECTANGULAR 325x179mm
€170.34 -
Ref. 35250189
PORTLIGHT OVAL 392x197mm
€185.40 -
Ref. L393220200
STAND. PORTLIGHT SZ-2 OPEN. WHITE TRIM LEWMAR
/ LEWMAR
€496.28 -
Ref. 35250192
PORTLIGHT RECTANGULAR 452x267mm
€339.01 -
Ref. L393020262
S.S. PORTLIGHT PLYABLE T-0 LEWMAR
/ LEWMAR
€282.20 -
Ref. L393220500
STAND. PORTLIGHT SZ-2 OPEN. IVORY TRIM LEWMAR
/ LEWMAR
€496.28 -
Ref. 35250269
PORTLIGHT 184mm STAINLESS STEEL
€112.78 -
Ref. L393329800
FLUSH MITRE PORTLIGHT T3 190X448 LEWMAR
/ LEWMAR
€1,693.83 -
Ref. 35250270
PORTLIGHT 210mm STAINLESS STEEL
€122.10 -
Ref. L393129802
FLUSH MITER PORTLIGHT 1 DARK GREY LEWMAR
/ LEWMAR
€666.14 -
Ref. 35250194
PORTLIGHT RECTANGULAR 369x193mm
€175.46 -
Ref. 35250263
PORTLIGHT 258mm ALUMINIUM
€242.62 -
Ref. L393520200
STANDARD PORTLIGHT T-5 LEWMAR
/ LEWMAR
€644.52 -
Ref. L393129800
FLUSH MITER PORTLIGHT 1 GREY LEWMAR
/ LEWMAR
€1,103.05 -
Ref. L393320200
STAND. PORTLIGHT SZ-3 OPEN. WHITE TRIM LEWMAR
/ LEWMAR
€540.57 -
Ref. 35250193
PORTLIGHT RECTANGULAR 370x273mm
€273.54 -
Ref. L30133000
STAINLESS PORTLIGHT ROUND OPENING LEWMAR
/ LEWMAR
€576.37 -
Ref. 35250268
PORTLIGHT 159mm STAINLESS STEEL
€103.67 -
Ref. L30216000
FLUSH MITER PORTLIGHT 115x322mm BLACK LEWMAR
/ LEWMAR
€1,121.61 -
Ref. L393820862
STAINLESS PORTLIGHT SZ-8 OPENING CHROMED LEWMAR
/ LEWMAR
€561.63
Product description
Data of interest
TECHNICAL DESCRIPTION
- The inner and outer frames of the porthole are made of anodized aluminum for maximum corrosion resistance.
- The quick-action handle applies the right pressure evenly on the seal when closed.
- The hinges offer a selection of open positions without knobs, stays, or straps. These and other moving parts are corrosion-free.
- The insect screen is made of nylon mesh with a molded frame that clips to the outer frame of the porthole. It can be left in place when the window is closed.
- The porthole should be installed on a flat surface with a maximum tolerance of +/- 1 mm. They come complete with fastenings.
- The opening of the porthole is restricted in very thick hulls. The opening angle at 21 mm hull thickness is 165º.
